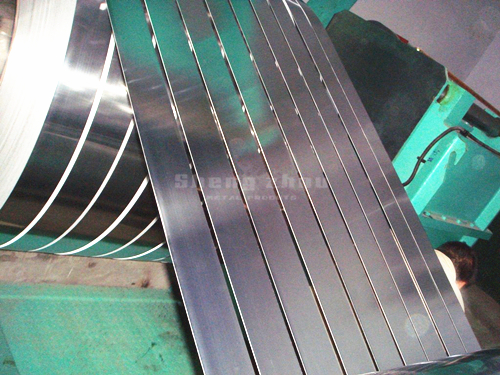

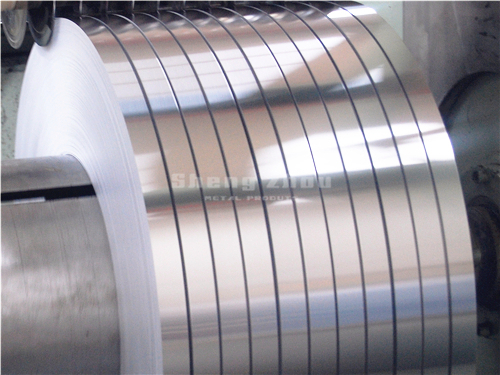

Aluminum Strip for Transformer

Specification of Aluminum Strip for Transformer

Material: pure aluminum 1060;

Temper: O;

Origin: Henan - Zhengzhou;

Executive standard: YS/T 713-2009.

Technical Parameters of 1060 Aluminium Strip for Transformer

Thickness: 0.2mm-3.0mm
Width: 20mm-1650mm
Resistivity: ≤0.028
Conductivity: ≥60%IACS
Conductivity is not less than 35.4m/（Ω·mm2）

Introduction of 1060 Aluminum Strip for Transformer

Transformer aluminum strip is the key raw material for the manufacture of transformer windings, which is the ribbon obtained by embossing aluminum ingots. Aluminum strip for transformer (aluminum strip for dry-type transformer) is made of high-quality pure aluminum. It has high conductivity, soft texture, smooth surface and no burr. It is an ideal material for producing dry-type transformers. In the production of aluminum strips for transformers, the requirement of many technical indexes such as electrical conductivity of aluminum strip and foil, burr curling, side bending, and surface quality are very high.

The 1060 transformer aluminum strip produced by Shengzhou Aluminum Industry have reached and exceeded the national standards in many technical parameters. The dry type transformer produced by the aluminum strip has the advantages of small volume, light weight, good insulation performance, flame retardant, no pollution, partial discharge, moisture resistance, stable and reliable operation, low noise and low maintenance cost. Mainly used in high-rise buildings, underground facilities, commercial centers, residential areas, hotels and coastal humid areas.

Select Material of Aluminum Strip for Transformer

1060 aluminum strips are generally used for dry-type transformers, which contains more than 99.6% aluminum, which is a common series in aluminum plate and strip family. The advantage of using this series of aluminum strips is that it is a commonly used series, the production process is simple, the technology is relatively mature, and the price has a huge price advantage compared to other high-grade alloy aluminum sheets. Its good elongation and tensile strength can fully meet the conventional processing requirements (stamping, stretching) and high formability. 1060 aluminum is industrial pure aluminum, with high plasticity, corrosion resistance, electrical conductivity and thermal conductivity, but the strength is low, heat treatment can not be strengthened, machinability is not good. It can be gas welded, hydrogen atom welded and contact welded, and is not easy to braze; it is easy to withstand various pressure processing and extension and bending.

Packaging of Aluminium Strip for Transformer

Description: The surface is smooth and scratch-free. The side can be 100% burr-free and better than national standards.
Packing: wooden pallet, inner diameter 300mm or 500mm.
